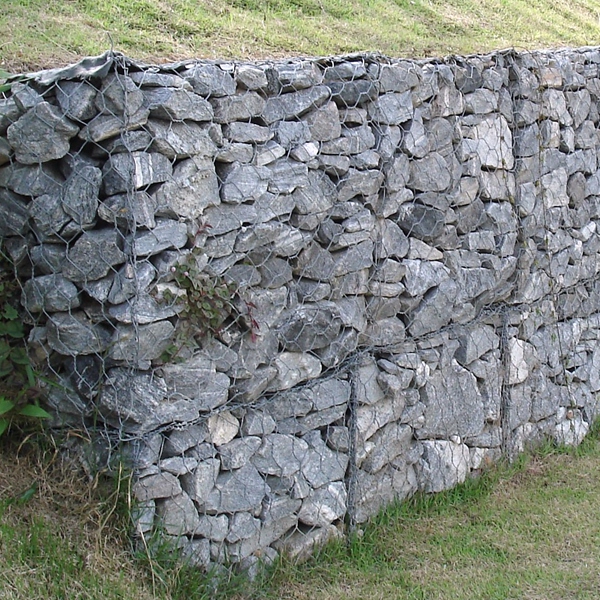

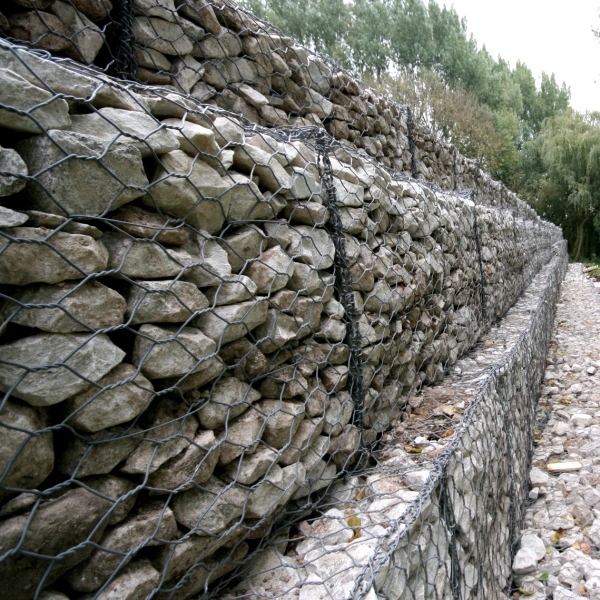

Hexgonal mesh gabion
Our company produce all sizes of woven mesh gabions. Customers are welcome to choose from the following form and particular request also available.

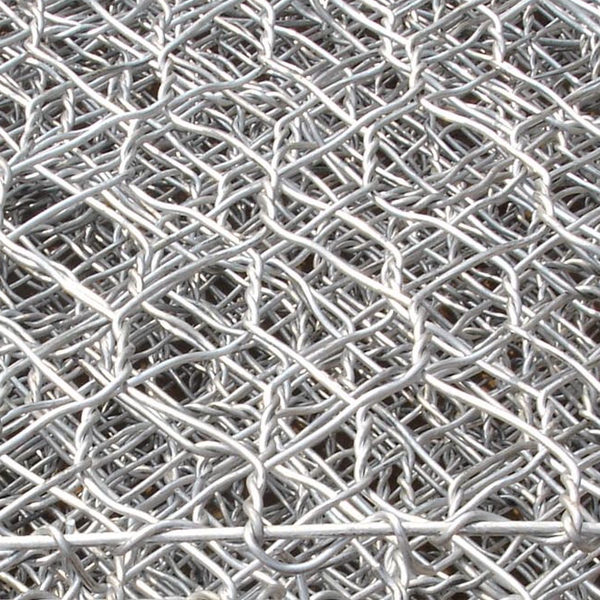

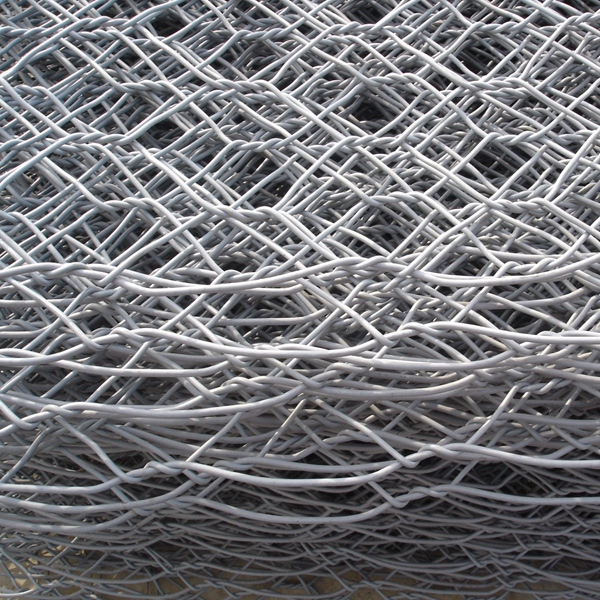

Materials: Hot Dipped Heavily Galvanzied PVC+Hot Dipped Heavily Galvanized Al-Zn Coated (Galfan)
GABION - BOX | ||||||
Dimensions’ | ||||||
Length | Width | Height | Volume | Need | Total of Boxes | |
M | M | M | M3 | M3 | ||
2.00 | 1.00 | 0.50 | 1.00 | |||
M | M | M2 | Quant./Pc | M2 | Pcs. Needed | |
Cover | 2.00 | 1.00 | 2.00 | 1 | 2.0 | |
Bottom | 2.00 | 1.00 | 2.00 | 1 | 2.0 | |
Front | 2.00 | 0.50 | 1.00 | 1 | 1.0 | |
Back | 2.00 | 0.50 | 1.00 | 1 | 1.0 | |
Divisions | 0.50 | 0.50 | 0.25 | 3 | 0.8 | |
6.8 | ||||||
TOTAL AREA NEEDED = | - | M2 | ||||
GABION - BED | ||||||
Dimensions | ||||||
Length | Width | Height | Volume | Need | Total of Beds | |
M | M | M | M3 | M3 | ||
6.00 | 2.00 | 0.17 | 2.04 | |||
M | M | M2 | Quant./Pc | M2 | Pcs. Needed | |
Cover | 6.00 | 2.00 | 12.00 | 1 | 12.0 | - |
Bottom | 6.00 | 2.00 | 12.00 | 1 | 12.0 | - |
Front | 6.00 | 0.17 | 1.02 | 1 | 1.0 | - |
Back | 6.00 | 0.17 | 1.02 | 1 | 1.0 | - |
Divisions | 2.00 | 0.17 | 0.34 | 7 | 2.4 | - |
28.4 | ||||||
TOTAL AREA NEEDED = | - | M2 | ||||
OBS: Along with this material, it must also be sent more 6% of the Total Weight in connecting wire with 2,2 mm, for the fixing of one panel with another.
